Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
Naam van het product: | QSFP28 LR4 optische transceiver | Leveringsvoltage: | 3.3V |
---|---|---|---|
Kracht: | -4.3~4.5dBm | Datasnelheid: | 100 g |
Waallengte: | LWDM | Transmissieafstand: | 10km |
Vezeltype: | SM | DDM: | - Ja, dat klopt. |
Hoog licht: | Data Center100g QSFP28 Zendontvanger,LR4 100G QSFP28-transceiver,10km 100G QSFP28 Zendontvanger |

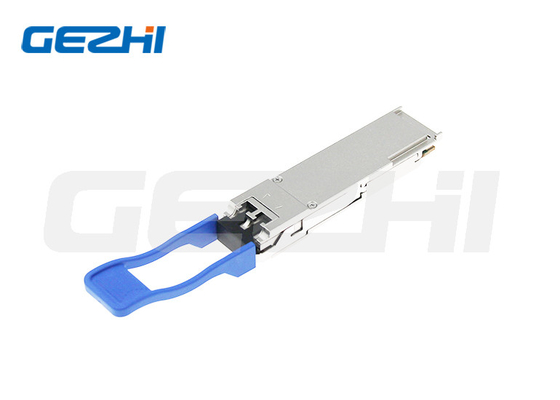

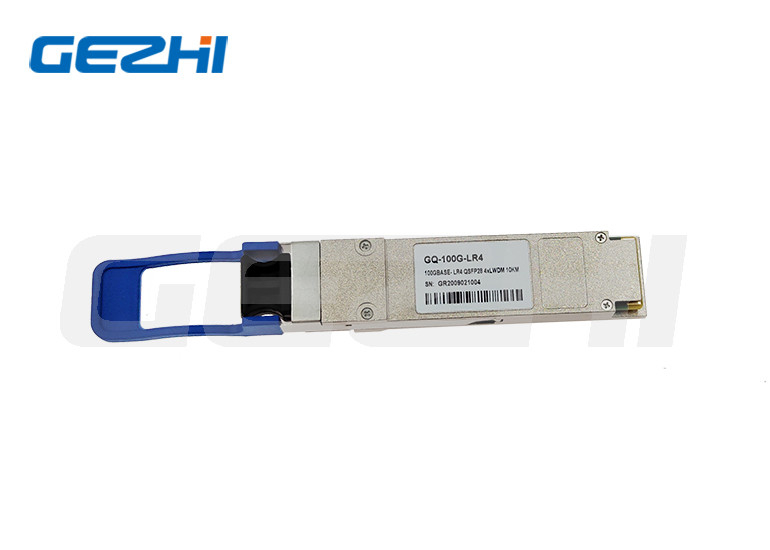

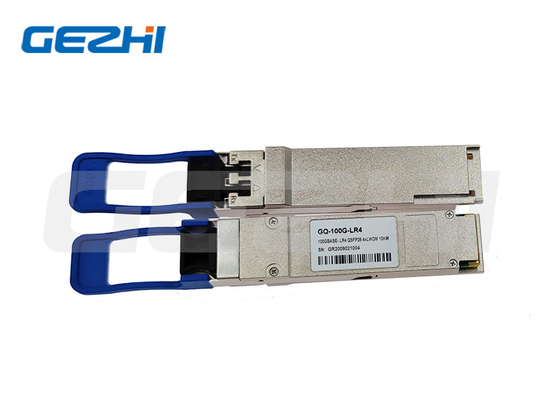

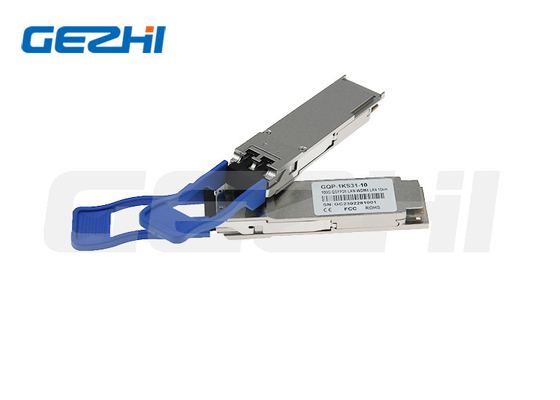

Datacenter 100G QSFP28 LR4 1310nm 10km LC-module LR4 100G
Productbeschrijving
De QSFP28-module biedt 100GBase-LR4 doorvoer tot 10 km over een standaard paar enkelmodusvezel (SMF) met duplex LC-connectoren.Warm wisselbare transceiver is geschikt voor verschillende toepassingen, zoals 100G Telecom Connections, Data Center, High-Performance Computing Networks, Enterprise Core And Distribution Layers, Campus Networks enz.
Productkenmerken
Toepassingen
Informatie over bestellingen
Productenummer | Waallengte | Gegevenspercentage | Afstand | TX Power | RX Sens | LD | PD | DDM |
GZQSFP0A0085MM01X(SR4) | 850 nm | 100 Gb/s | 100 miljoen | -8,4 tot 2,4 dBm | < 5,2 dBm | VCSEL | PIN-code | - Jawel. |
GZQSFP0AL031SL10X(LR4) | LAN WDM (Nota 2) | 100 Gb/s | 10 km | -4,3 tot 4,5 dBm | < 10,6 dBm | DFB | PIN-code | - Jawel. |
GZQSFP0AL031SL10X(LR4) | LAN WDM (Nota 2) | 100 Gb/s | 10 km | -4,3 tot 4,5 dBm | < 10,6 dBm | DFB | PIN-code | - Jawel. |
GZQSFP0AC027SL00X ((CWDM4) | CWDM (Noot 1) | 100 Gb/s | 10 km | -6,5 tot 2,5 dBm | < 10,0 dBm | DFB | PIN-code | - Jawel. |
GZQSFP0A0031SM00X(PSM4) | 1310 nm | 100 Gb/s | 2 km | -4,3 tot 4,5 dBm | < 10,6 dBm | DFB | PIN-code | - Jawel. |
