Product Description

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

CE RoHS,ISO9001

Productnaam:

FTTH-WDM

Golflengte:

1310&1490&1550

Haven:

Drievoud

Pakket:

LGX-Cassette

Schakelaar:

SC/APC

Toepassing:

CATV

Verpakking Details:

Document Vakje

Levering vermogen:

100000Channel per maand

Markeren:

WDM van 1550nm FTTH

Drievoudige Havenftth WDM

Het Apparaat van FTTH FWDM

Product Description

Filter-based wavelength division multiplexing (WDM) filter devices

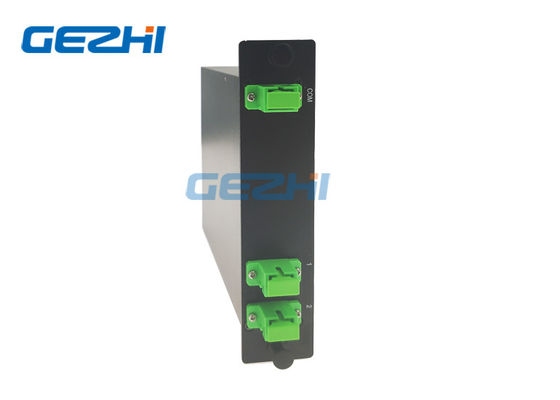

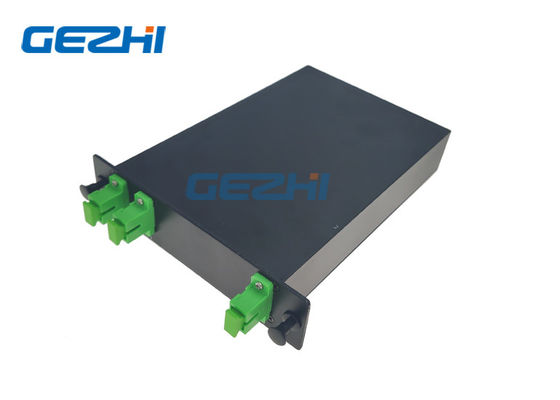

GEZHI's Filter-based wavelength division multiplexing (WDM) filter devices utilized thin-film filter technology. It multiplexes & demultiplexer three wavelength at 1310, 1490 & 1550nm that carry the voice, data and video services. The Filter-based wavelength division multiplexing (WDM) filter devices combines and separates light to realize bidirectional communication signals at 1310/1490/1550nm wavelength in a wid range. Its used in the "triple-play" FTTH systems with 1 to 2 port configuration. 3wavelengths are fed into the device through the common input port, one wavelength is reflected from one output port, simultaneously, the other 2 wavelengths pass through the device at other output port.

Features

Applications

Wide Bandwidth
High Isolation
Low Insertion loss
HIgh Reliability and channel isolation

CATV
Transmitters and Fiber Lasers
Single Direction/Bi-direction Transmission
Line Monitoring
FTTX

1310/1550nm FWDM - for WDM or DWDM optical communications
1310/1490/1550nm FWDM - for PON, FTTX and test instrument
1310/1550/1625nm FWDM - for testing active fibers in service
1310/1490/1550/1625nm FWDM - for combining or separating 1625nm channel with three triplex wavelength 1310nm, 1490nm and 1550nm so that 1625nm channel can be added into the existing triplex FTTH system
1480/1550nm FWDM - for high-power DWDM optical amplifier and EDFA
1510/1550nm FWDM - for DWDM multi-channel optical networks
980/1550nm FWDM - for high performance DWDM optical amplifier and EDFA amplifier

Specification

Parameters	Unit	FWDM Device
Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50,1490±10, 1550±10 1610±10, 1625±25, 1650±20	nm	1	T1550 R1310/1490
		2	T1490 R1310/1550
		3	T1310 R1490/1550
		4	T1550/1610 R1310/1490
		5	T1550/1625 R1310/1490
		6	T1625 R1310/1490/1550
		7	T1650 R1310/1490/1550
Insertion Loss	dB	Transmission: ≤ 0.6
		Reflection: ≤ 0.4
Transmission Channel Isolation	dB	≥ 30
Reflection Channel Isolation	dB	≥ 17
PDL	dB	≤ 0.1
Wavelength thermal stability	nm/℃	≤ 0.003
Insertion loss thermal stability	dB/℃	≤ 0.005
Return loss	dB	≥ 45
Optical Power	mW	≤ 500
Operating Temperature	℃	-10 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	Φ5.5×34	Φ4.2×25	90×20×10
Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector.

Package Type

Glass Tube Package for 250um bare fiber
Steel Tube package for 250um bare fiber and 900um fiber
ABS box for 900um, 2.0mm and 3.0mm fiber
Note: 250um bare fiber is too finne to be equiped with connector

Filter-based wavelength division multiplexing (WDM) filter devices

Ordering Information:

Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

Dimension

T15R13/14=T1550 R1310/1490

T14R13/15=T1490 R1310/1550

T13R14/15=T1310 R1490/1550

T15/16R13/14=T1550/1610R1310/1490

X=Others

25=250um

90=900um 20:2000um

30=3000um

X=Others

05=0.5m±0.05m

10=1.0m±0.05m

15=1.5m±0.05m

X= Others

00=None

FP=FC/PC

FA=FC/APC

SP= SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LC/APC

X=Others

5534=Φ5.5×34mm

4225=Φ4.2×25mm

9021=90×20×10mm

LGX=LGX Cassette

X=Customized

Solutions of Filter-based WDM Network

The Filter WDM system uses a Multiplexer at the transmitter to combine several wavelengths together, each one carry different signal with bite-rate up to 10G and a demultiplexer at the receiver to split them apart.
